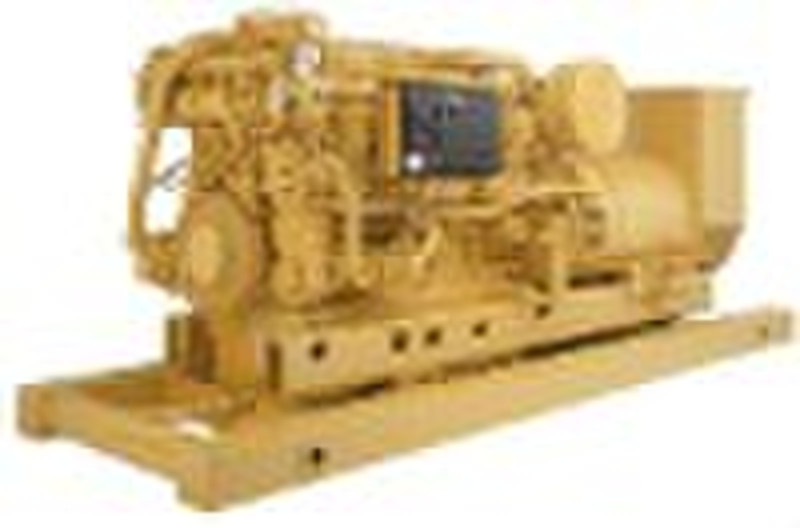

3512B Diesel Generating Set

Product modelModel of generating sets3512B3512B3512BHD3512BHDReserve power(EKW)1200128014001500Main power(EKW)1088120012801360No.and layout of cylinders12-cylinder,Vee12-cylinder,Vee12-cylinder,Vee12-cylinder,VeeBore x Stroke(mm)170 x 190170 x 190170 x 215170 x 215Speed governorCAT ADEM ECUCAT ADEM ECUCAT ADEM ECUCAT ADEM ECUBreathing modeT/ACT/ACT/ACT/ACCompression ratio13:113:113115.51Displacement (L)51.851.858.658.6Rotate speed (r/min)1500150015001500Cooling air level-full backup (m3/min)1614161415581841Combustion supporting air level-full backup (m3/min)9699.7113.8120.3Fuel consumption level-full backu(L/h)319.5333.3362.7390.9Exhaust smoke level-full backup (m3/min)259.7266.5302.5324.9Max exhaust back pressure (Kpa)6.76.76.76.7Exhaust temperature-full backup ()492.7484.2489.1501.1Recommended lubricantsAPI CD 15W-40API CD 15W-40API CD 15W-40API CD 15W-40Lubricant volume(L)310310310310Coolant volume (L)287287287287Min environmental temperature of coolant protection()-36-36-36-36Battery typePlumbous acid24VDCPlumbous acid24VDCPlumbous acid24VDCPlumbous acid24VDCHeat dissipating capacity of environment (KW)195.5192.6181.3193.4Generator set assembly plant caterpillarcaterpillarcaterpillarcaterpillarExcitation modepermanent-magnet excitation permanent-magnet excitation permanent-magnet excitation permanent-magnet excitation Voltage regulating rate±1%±1%±1%±1%Insulation gradeHHHHOverall dimension L x W x H (mm)5111.5 x 2084.9 x 23325097x 2035 x 23675523 x 2090 x 23325471 x 2286 x 2332weight (kg) 13204140251452014678
